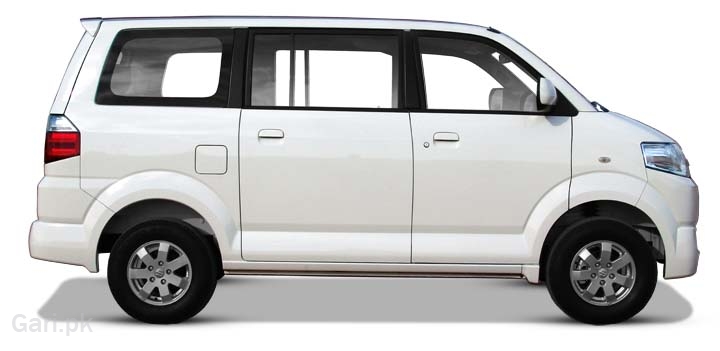

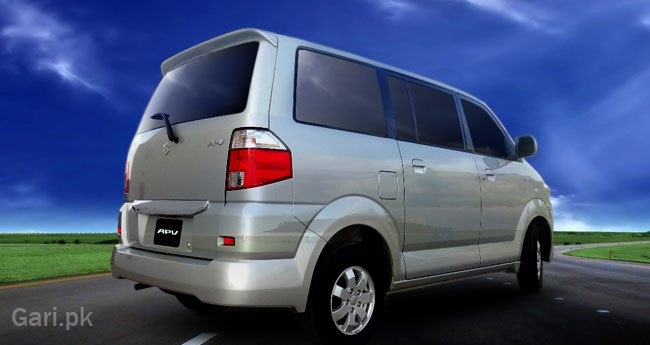

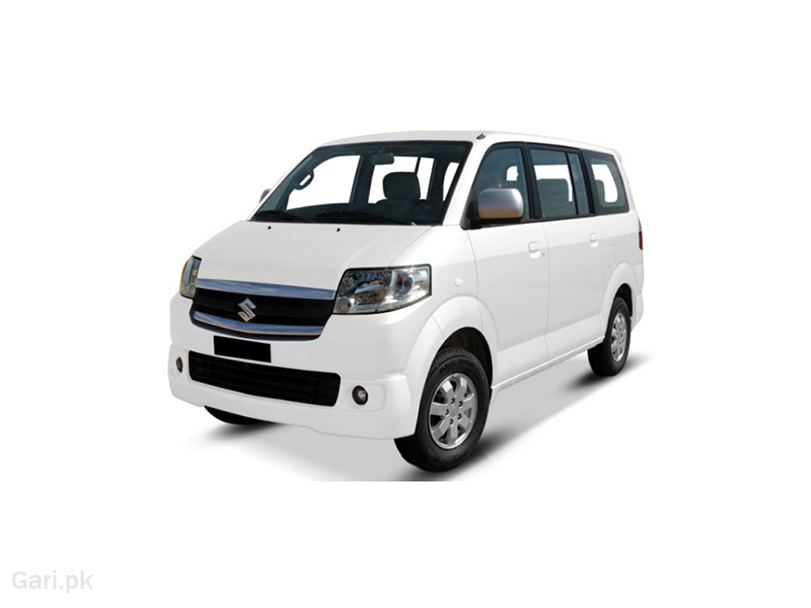

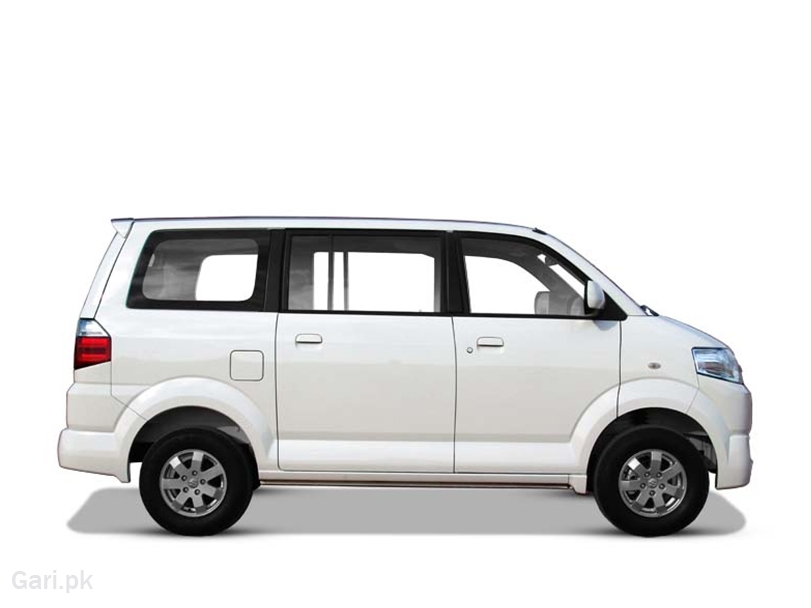

Suzuki APV GLX CNG Price in Pakistan, Specs & Features
Suzuki APV 1st Generation 2005-2022
Engine
1493 cc
Horsepower
91 hp @ 6000 RPM
Torque
126 Nm @ 3000 RPM
Mileage
9-12 KM/L
Key Specifications of Suzuki APV GLX CNG
CNG
91 hp @ 6000 RPM
8 Seats
Manual
Body Type
FWD
Key Features of Suzuki APV GLX CNG

Front Power Windows / Electric Windows




Suzuki APV GLX CNG Colors

Graphite Grey

Silky Silver

Solid White
Suzuki APV GLX CNG Brochure Specs and Features
See latest and brand new Suzuki APV GLX CNG full specs with all the features in detail.
Model |
APV |
||
Grade |
GLX CNG |
||
Engine |
G15A |
||
Transmission |
5MT |
||
DIMENSIONS |
|||
Overall length mm |
4,230 |
||
Overall width mm |
1,655 |
||
Overall height mm |
1,865 |
||
Wheelbase mm |
2,625 |
||
Front overhang |
715 |
||
Rear overhang |
890 |
||
Tread |
Front mm 1,435 |
||
Rear mm 1,435 |
|||
Minimum turning radiusm |
4.9 |
||
Minimum ground clearance |
185 Diff |
||
CAPACITIES |
|||
Seating capacity persons |
8 |
||
ENGINE |
|||
Type |
G15A |
||
Emission Level |
EURO 2 |
||
Number of cylinder |
4 |
||
Number of valves |
16 |
||
Piston displacementcm3 |
1,493 |
||
Bore x stroke mm |
75.0x84.5 |
||
Compression ratio |
9.5 |
||
Maximum output kW/rpm |
68/6,000 |
||
Maximum torque N-m/rpm |
126/3,000 |
||
Fuel distribution |
MPI |
||
TRANSMISSIONS |
|||
Type |
5-speed manual |
||
Gear ratios |
1st 4.545 |
||
2nd 2.628 |
|||
3rd1.865 |
|||
4th 1.241 |
|||
5th 1.000 |
|||
Reverse 4.431 |
|||
Final gear ratio |
4.300 |
||
CHASSIS |
|||
Steering |
Rack & Pinion |
||
Brakes |
FrontVentilated discs |
||
Rear Leading and trailing drums |
|||
Suspension |
FrontMacPherson strut & coil spring |
||
Rear 3-link rigid axle with coil springs |
|||
Tyres |
185/80R14 |
||
WEIGHT |
|||
Kerb weight min. / with full options |
kg 1,270 |
||
Gross vehicle weight |
kg 1,950 |
||
FUEL CONSUMPTION |
|||
Fuel tank capacity |
litres 46 |
||
CHASSIS |
|||
Tyres and Wheels |
185/80R14 + aluminium-alloy wheels |
Yes |
|
EXTERIOR |
|||
Spoilers |
Rear-end spoile |
Yes |
|
Outside door handles |
Coloured |
Yes |
|
Tailgate handle |
Chromed |
Yes |
|
Tailgate opener |
Key-operated |
Yes |
|
Handle-operated |
Yes |
||
Coloured bumpers |
Front |
Yes |
|
Rear |
Yes |
||
Front grille |
Chromed garnish |
Yes |
|
VISIBILITY |
|||
Fog lamps |
Front |
Yes |
|
Wipers |
Front: 2 speed low, high |
Yes |
|
Front: Intermittent |
Yes |
||
Rear: 1 speed |
Yes |
||
Rear window demister |
Yes |
||
Outside door mirrors |
Coloured |
Yes |
|

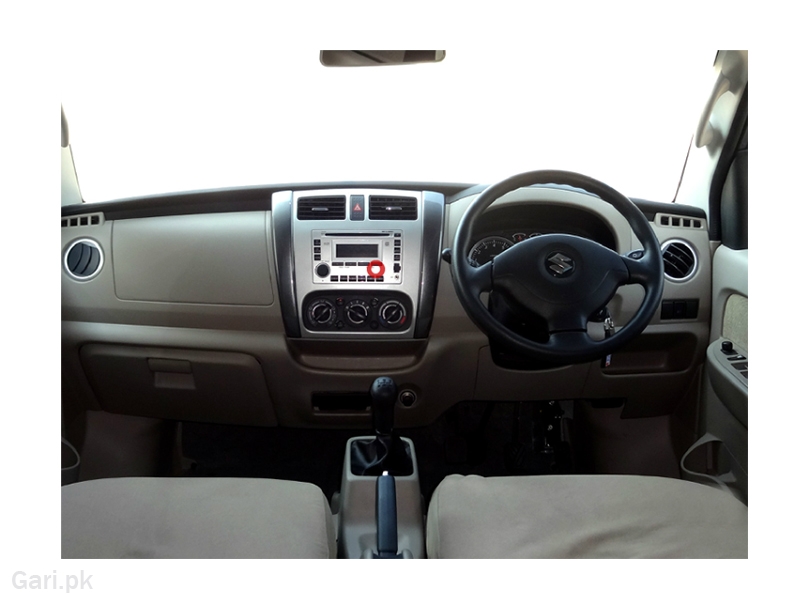

STEERING AND INSTRUMENT PANEL |
|||
3-spoke steering wheel |
Urethane |
Yes |
|
Power steering |
Yes |
||
Tilt-adjustable steering wheel |
Yes |
||
Tachometer |
Yes |
||
Low fuel warning |
Lamp |
Yes |
|
Instrument panel centre garnishes |
Silver / Carbon |
Yes |
|
Side louvre bezels |
Silver coloured |
Yes |
|
DRIVING AMENITIES |
|||
Electric windows |
Front |
Yes |
|
Rear |
Yes |
||
Central door locking |
Yes |
||
Remote-control door locks |
with hazard lamp answer back function |
Yes |
|
Air Conditioner |
Manual |
Yes |
|
Rear controls |
Yes |
||
Audio |
Antenna |
Yes |
|
Speaker x 4 |
Yes |
||
Tweeter x 2 |
Yes |
||
CD cassette tuner with MP3 |
Yes |
||
INTERIOR |
|||
Cabin lights |
Front cabin light 3-position |
Yes |
|
Rear cabin light 3-position |
Yes |
||
Sun visors |
Driver’s side with ticket holder |
Yes |
|
Passenger’s side with vanity mirror |
Yes |
||
Assist grips |
Passenger’s side |
Yes |
|
2nd-row x2 |
Yes |
||
3rd-row x2 |
Yes |
||
Access support grips |
Driver’s side |
Yes |
|
Passenger’s side |
Yes |
||
Cup holders |
Rear x 2 |
Yes |
|
Bottle holders |
Front x 2 |
Yes |
|
Parking brake release button |
Chromed |
Yes |
|
Cigarette lighter & Ashtray |
Yes |
||
Remote fuel lid opener |
Yes |
||
Inside door openers |
Silver coloured |
Yes |
|
Inside lock knob |
Chromed |
Yes |
|
Front and rear door trim |
Moulded |
Yes |
|
Cloth-accented |
Yes |
||
Storage pockets |
Front door / Rear door |
Yes |
|

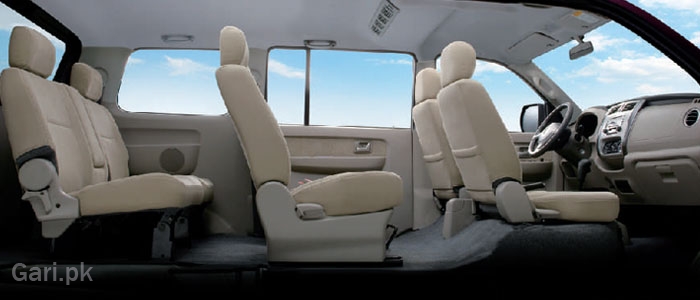

SEATS |
|||
Front seats |
Slide and reclining adjustment |
Yes |
|
Full-flat reclining |
Yes |
||
Seatback pocket driver’s side |
Yes |
||
Seatback pocket passenger’s side |
Yes |
||
2nd-row seats |
Reclining |
Yes |
|
60:40 split |
Yes |
||
Tumble-folding |
Yes |
||
Head restraint x 2 |
Yes |
||

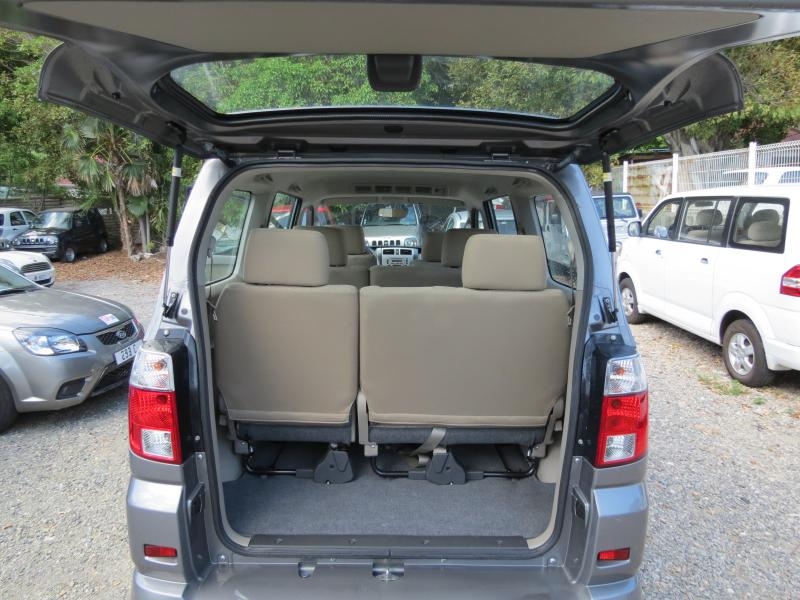

3rd-row seats |
Reclining |
Yes |
|
60:40 split |
Yes |
||
Tumble-folding |
Yes |
||
Head restraint x 2 |
Yes |
||
Seat upholstery material |
Fabric |
Yes |
|
Armrests |
2nd-row centre |
Yes |
|
3rd-row centre |
Yes |
||
SAFETY, SECURITY, AND ENVIRONMENTAL COMPATIBILITY |
|||
Seatbelts |
Front: 3-point ELR seatbelts |
Yes |
|
With height adjusters |
Yes |
||
2nd-row: 3-point ELR seatbelts x 2 |
Yes |
||
With centre 2-point lapbelt |
Yes |
||
3rd row: 3-point ELR seatbelts x 2 |
Yes |
||
With centre 2-point lapbelt |
Yes |
||
Side impact door beams |
Yes |
||
High-mount stop lamp |
Yes |
||
Mud flaps |
Front |
Yes |
Suzuki APV GLX CNG Specifications
Kerb Weight | 1270 KG | No of Doors | 4 doors |
Overall Height | 1865 mm / 6'2" feet | Overall Length | 4230 mm / 13'11" feet |
Overall Width | 1655 mm / 5'6" feet | Wheel Base | 2625 mm / 8'8" feet |
Ground Clearance | 185 mm / 0'8" feet |
Cylinder Configuration | In Line | Displacement | 1493 cc |
Engine Power | 91 hp @ 6000 RPM | Fuel System | Multi Point Injection |
Torque | 126 Nm @ 3000 RPM | Valve Mechanism | DOHC 16 Valves |
Valves per Cylinder | 4 | Compression Ratio | 9.5:1 |
Assembly | Imported | Warranty | - |
No of Cylinders | 4 | Fuel Grade | - |
CO2 Emission | - | Bore/stroke (mm) | - |
Minimum Turning Radius | 4.9 m | Steering Type | Rack & Pinion with Hydraulic Pump |
Power Assisted | Hydraulic Power Steering | Steering Switch | - |
Tire / Tyre Size | 185/80/R14 | Wheel Size | 14 in |
PCD | 5 x 114.3 mm | Wheel Type | Aluminium Alloy Wheels |
Mileage City | 9 KM/LITER | Mileage Highway | 12 KM/LITER |
Fuel Tank Capacity | 46 L |
Gearbox | 5-speed |
Suspension | Front: Macpherson Strut with Coil Spring, Rear: Multi-Link Wishbone | City driveability (20-80 kmph) | - |
Top Speed | 180 KM/H | Drive Modes | - |
Parking Sensors | Acceleration 0-100kmph | - | |
Headlights | - | Day Time Running Lights (DRL) | - |
Brakes | Front: Ventilated Discs, Rear:Drums | Braking (100-0 kmph) | - |
Braking (80-0 kmph) | - |
