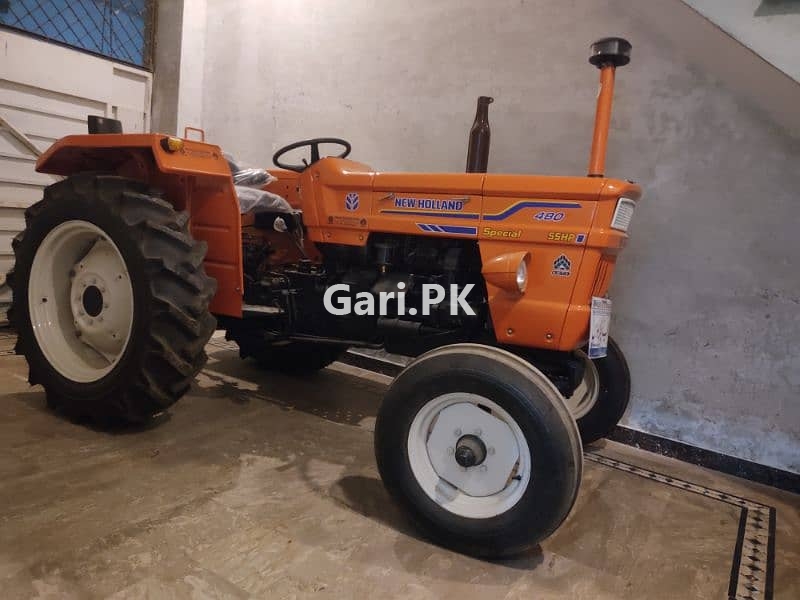

Al Ghazi NH 480s 55 HP 2025 Price in Pakistan & Specs

PKR 2,369,400

Get On-Road Price

Get This Vehicle Financed

Write a Review

New Al Ghazi NH 480s

Used Al Ghazi NH 480s

Engine

2710 cc

Horsepower

55 hp

Torque

223 Nm @ 1500 RPM

Key Specifications of Al Ghazi NH 480s 55 HP

Diesel

55 hp

1 Seats

Manual

Body Type

Tractor

Drive Train

2WD

Key Features of Al Ghazi NH 480s 55 HP

Al Ghazi NH 480s 2023 Models

Al Ghazi NH 480s 55 HP Brochure Specs and Features

See latest and brand new Al Ghazi NH 480s 55 HP full specs with all the features in detail.

ENGINE POWER
At Fly Wheel	55 Horse Power (2WD)
OPERATING WEIGHT	1710 KG
ENGINE
New Holland 8035.06	4-Stroke, direct injection diesel engine
Number of cylinder	3
Bore and stroke	100 x 115 mm
Piston Displacement	2,710 cc
Compression ratio	17:1
Max. Torque at 1,500 rpm	22.7 kgm
Dry-type cylinder liners	Water cooled, Four-row brass tube & copper fin radiator Forced-feed lubrication system Distributor-type fuel injection pump with mechanical speed governor Vertical exhaust muffler
FILTERS
Air	Oil-bath with pre-cleaner
Fuel	2 replaceable cartridges
Oil	Easy-to-change, continuous flow cartridge
CLUTCH
Dual plate, dry-type, with separate controls (pedal for transmission and hand lever for PTO) Diameter of plates	11 inch Plate facing of asbestos compound
TRACKS
Front (8 position)	1.320 – 1,420 – 1,520 – 1,620- 1,720 – 1,820 – 1,920 – 2,020 mm
Rear (8 position)	1,200 – 1,300 – 1,400 – 1,500- 1,600 – 1,700 – 1,800 – 1,900 mm
BRAKES
	Service dry band-type with mechanical control
Parking	with hand lever
STEERING
STEERING	Manual, recirculating ball type, centre relay lever, joints lubricated for life
CAPACITY
Fuel tank	54 Itr
Engine oil	8 Itr
Hydraulic Transmission	18 Itr
Rear Axle	2+2 Itr at both sides
Air Cleaner	1 Itr
TYRES
Front	6.00-16 Inches
Rear	12.4/11-28
DIMENSIONS
(With 6.00-16 and 12.4/11-28 tyres)
A: Wheelbase:	1,920 mm
B: Overall length	2,960 mm
C: Height to top of hood	1,390 mm
D: Height to steering wheel	1,490 mm
E: Front track (8 positions)	from 1,320 to 2,020 mm
F: Rear track (8 positions)	from 1,200 to 1,900 mm
G: Ground clearance under front axle	480 mm
TRANSMISSION
Gear box with constant-mesh gears	8 forward and
2 reverse speeds	Synchromesh on 3rd, 4th, 7th and 8th speeds Differential with pedal actuated lock and automatic disconnection Single-reduction spur gear final drives Gear Box mounted starter safety switch
FRONT AXLE	Telescopic type, inverted U, variable track
POWER TAKE OFF PTO	6 spline shaft – 35 mm dia
Fully independent	540 rpm at 2,160 engine rpm
High-speed DTO 35 mm dia same speed as engine for application of high speed implements.
HYDRAULIC LIFT
With draft and position control, Draft control through top link, Gear type hydraulic pump driven from engine crankshaft, Pump capacity	22.7 1/min Relief value opening pressure: 150-170 kg/cm2 3-point linkage Cat I-II Manual response control Lower links with sway restrictors Control Lever with safety stop. Max. Lifting capacity: 1,450 kg
BODY	Hood has side-hinged cover for engine inspection. Front grill is easily removable for quick access to air cleaner and battery.
DRIVER’S SEAT	Fully upholstered with parallelogram suspension, adjustable to driver’s weight.
LIGHTING SYSTEM	With 3-position headlights, plough lamp, blue high beam warning light on dashboard, low oil pressure warning light.
ELECTRICAL SYSTEM	12 Volt starting system, 4hp (3kw) starter motor, 400 watts alternator, 100 ah battery.
OPTIONAL	Canopy, Towing hook, Swinging Draw bar, Cold Starting aid, Front weight, High Clearance Kit, Low Clearance Kit, DTO pump applications and Creeper gear etc.

Show More ▼Show Less ▲

Al Ghazi NH 480s 55 HP Specifications

Kerb Weight	1710 KG	No of Doors	0 doors
Overall Height	1490 mm / 4'11" feet	Overall Length	2960 mm / 9'9" feet
Overall Width	mm / 0'0" feet	Wheel Base	1920 mm / 6'4" feet
Ground Clearance	480 mm / 1'7" feet

Cylinder Configuration	Dry-type cylinder liners	Displacement	2710 cc
Engine Power	55 hp	Fuel System	direct Fuel injection
Torque	223 Nm @ 1500 RPM	Valve Mechanism	-
Valves per Cylinder	-	Compression Ratio	17
Assembly	Local	Warranty	-
No of Cylinders	3	Fuel Grade	-
CO2 Emission	-	Bore/stroke (mm)	100 x 115

Minimum Turning Radius	-	Steering Type	recirculating ball type
Power Assisted	Manual	Steering Switch	-

Tire / Tyre Size	F/R: 16/12	Wheel Size	16 in
PCD	mm	Wheel Type

Mileage City	0 KM/LITER	Mileage Highway	KM/LITER

Fuel Tank Capacity	54 L

Gearbox	8-speed

Suspension	-	City driveability (20-80 kmph)	-

Top Speed	-	Drive Modes	-
Parking Sensors	-	Acceleration 0-100kmph	-
Headlights	-	Day Time Running Lights (DRL)	-

Brakes	Service dry band-type with mechanical control	Braking (100-0 kmph)	-
Braking (80-0 kmph)	-

Drive Type	Rear wheel drive	Drive Setup	-
Brochure	Download	Waiting Time (Own)	-
