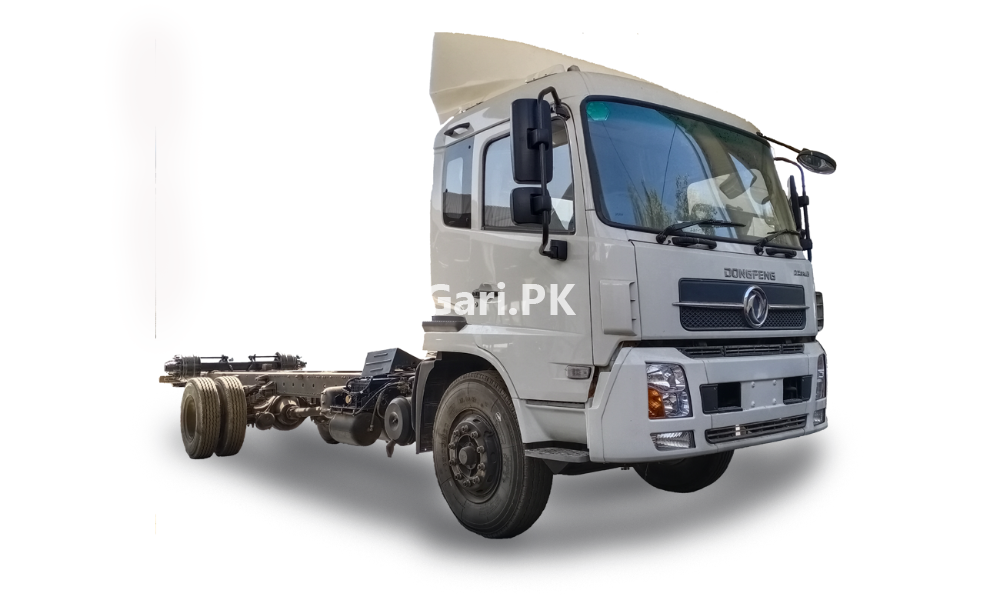

Dongfeng DF245 RG 6x2 Rigid Truck 2025 Price in Pakistan & Specs
Engine
6700 cc
Horsepower
245 hp @ 2500 RPM
Torque
950 Nm @ 1500 RPM
Key Specifications of Dongfeng DF245 RG 6x2 Rigid Truck
245 hp @ 2500 RPM
2 Seats
Manual
Body Type
6x2
Key Features of Dongfeng DF245 RG 6x2 Rigid Truck
Dongfeng DF245 RG 6x2 Rigid Truck Brochure Specs and Features
See latest and brand new Dongfeng DF245 RG 6x2 Rigid Truck full specs with all the features in detail.
DF 245
|
6X2 Truck Chassis
|
Vehicle Weight
|
|
G.C.M (kg)
|
32,000
|
Chassis Dimensions (mm)
|
|
Overal Chassis Length
|
10,050
|
Cab Width
|
2,470
|
Cab Height (Unladen)
|
2,815
|
Wheel Base
|
6,100
|
Front Overhang
|
1,430
|
Rear Overhang
|
2,520
|
Max. Speed
|
110 km/hr
|
Gradeability
|
40%
|
Frame Dimensions (mm)
|
|
Frame Width (Front)
|
860
|
Frame Width (Rear)
|
860
|
Frame Section Height
|
280
|
Frame Section Width
|
80
|
Clutch
|
|
Diameter
|
430 mm (17 inch)
|
Operating System
|
Hydraulic Control with Air booster, pushing.
|
Engine
|
|
Make
|
Cummins
|
Model
|
ISDe 245 30
|
Emission Level
|
Euro III
|
Max Power
|
245 hp at 2500 rpm
|
Max Torque
|
950 Nm at 1500 rpm
|
Displacement (lit)
|
6,700 CC
|
No. of Cylinders
|
6
|
System
|
Electronical control High pressure Common Rail Fuel System, Water Cooled, turbocharged, after cooled.
|
Gear Box / Transmission
|
|
Type
|
9JS119T-B
|
Number of Gears
|
9 forward Gears & 1 reverse synchronized
|
Axles
|
|
Make
|
DANA
|
Front
|
Elliot type I beam section
|
Load Capacity
|
6 tons
|
Rear
|
Single reduction
|
Load Capacity (ton)
|
13+13 Tons
|
Final Ratio
|
4.11
|
Suspension
|
|
Front
|
8 Leaf Spring w. shock absorber
|
Rear
|
10+8 Leaf Spring
|
Brake System
|
|
Brake
|
Full air brake system, split pneumatic circuit, parking spring break acting on rear axle, exhaust brake, ABS.
|
Fuel Tank
|
|
Type
|
Steel Fuel tank w. lockable cap
|
Capacity
|
280 ltrs
|
Cabin
|
|
Cabin
|
Kingrun one and a half row cab, forward control hype, all welded steel cab of tilt type, electrical cab tilt, rear mechanical cab suspension adjustable driver's seat. Air Conditioner system, electrical windows, central lock.
|
Tyres
|
|
Front
|
Single
|
Rear
|
Dual
|
Size
|
11.00R20
|
Battery
|
|
Voltage (V)
|
24
|
Battery Capacity
|
165X2
|
Dongfeng DF245 RG 6x2 Rigid Truck Specifications
Kerb Weight | 32000 KG | No of Doors | 2 doors |
Overall Height | 2815 mm / 9'3" feet | Overall Length | mm / 0'0" feet |
Overall Width | 2470 mm / 8'2" feet | Wheel Base | 6100 mm / 20'1" feet |
Ground Clearance | - |
Cylinder Configuration | - | Displacement | 6700 cc |
Engine Power | 245 hp @ 2500 RPM | Fuel System | High pressure Common Rail Fuel |
Torque | 950 Nm @ 1500 RPM | Valve Mechanism | turbocharged |
Valves per Cylinder | - | Compression Ratio | - |
Assembly | Local | Warranty | - |
No of Cylinders | 6 | Fuel Grade | - |
CO2 Emission | Euro III | Bore/stroke (mm) | - |
Minimum Turning Radius | - | Steering Type | |
Power Assisted | - | Steering Switch | - |
Tire / Tyre Size | 11.00R20 | Wheel Size | 20 in |
PCD | mm | Wheel Type |
Mileage City | 0 KM/LITER | Mileage Highway | KM/LITER |
Fuel Tank Capacity | 280 L |
Gearbox | 9-speed |
Suspension | Front: 8 Leaf Spring w. shock absorber, Rear: 10+8 Leaf Spring | City driveability (20-80 kmph) | - |
Top Speed | 110 KM/H | Drive Modes | - |
Parking Sensors | - | Acceleration 0-100kmph | - |
Headlights | - | Day Time Running Lights (DRL) | - |
Brakes | Full air brake system, parking spring & exh | Braking (100-0 kmph) | - |
Braking (80-0 kmph) | - |
