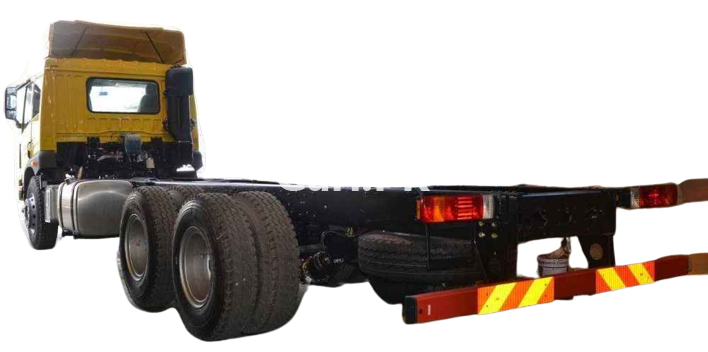

FAW J5M 220 Super Plus 6x2 Rigid 2025 Price in Pakistan & Specs

Write a Review

New FAW J5M 220

Used FAW J5M 220

Engine

6557 cc

Horsepower

220 @ 2300

Torque

770 @ 1400

Key Specifications of FAW J5M 220 Super Plus 6x2 Rigid

Diesel

220 @ 2300

2 Seats

Manual

FWD

Key Features of FAW J5M 220 Super Plus 6x2 Rigid

FAW J5M 220 Super Plus 6x2 Rigid Colors

Maroon

White

Yellow

FAW J5M 220 2021 Models

FAW J5M 220 Super Plus 6x2 Rigid Brochure Specs and Features

See latest and brand new FAW J5M 220 Super Plus 6x2 Rigid full specs with all the features in detail.

Mass
Permissible G .C .W (Kg)	28,500
Axle Load Distribution (kg)
Front	6,500
Rear	22,000
Chassis Weight (kg)
Total	7,800
Front	3,800
Rear	4,000
Performance
Max. Speed (km/h)	85
Max. Gradeability (%)	32
Fuel tank capacity (L)	400
Engine
Model	FAWDE CA6DF2D-22
Type	Diesel,4 stroke in line , 6 cylinders , water cooled, turbo charged with inter cooler
Displacement (cc)	6557 (6.5 litre)
Bore	110X115
Emission	Euro ll
Transmission
Mode	FAW CA7TB1OOM
Type	7 forward 1 reverse ( inclusive of ‘C’ Gear)
Gear ratio	i1=10.120/i2=7.270/ i3 = 4.310/ i4=2.718/ i5 = 1.826/ i6=1.342/ i7=1.000
Reverse shift ratio	lr = 9.397
Clutch
Type	Eaton dry type.single plate,diaphragm spring clutch, hydraulic controlled and air aided power operating
Driven plate dia.	Ø 395 (15.5)
Axles
Front	Reverse elliot “l” section beam
Rear	FAW single reduction
Ratio	5.28 (7/37)
Brakes
Driving brake	Full air dual circuit brake
Parking brake	Spring energy storage type
Auxiliary brake	Exhaust brake
Steering
Model/ type	Recirculating ball-type steering, integrated power steering
Cab
Type	Cab over engine,front tilting 44 angle
Suspension	2-point hydraulic suspension
Seats type	Mechanical suspension seat with 3-point seat belt
Seating capacity	2
Dimensions
Length (mm)	9845
Width (mm)	2490
Height (mm)	2720
Length behind cab (mm)	7718
Wheel base (mm)	4725 + 1350
Min.Ground clearance	298
Front overhang (mm)	1375
Rear overhang (mm)	2935
Suspension
Front	Semi-elliptic multi-leaf springs
Rear	Semi-elliptic,multi-leaf main springs with auxiliary springs
Wheel
Rim	8.00-20
Wheel type	Stud- pilloted 10-hole steel disc
Tyre Size	11.00-20R
No.of Tyres	11
Turning Radius (m)	8.5
Frame
Type	Side Rails. Punching & riveted construction
Main rail section	280x90x8
Electrical & Lights
Type	Earth return system ,negative earthed,
Battery (V/Ah)	2x12V/150
Generator	1200 W

Show More ▼Show Less ▲

FAW J5M 220 Super Plus 6x2 Rigid Specifications

Kerb Weight	-	No of Doors	2 doors
Overall Height	2720 mm / 9'0" feet	Overall Length	9845 mm / 32'4" feet
Overall Width	2490 mm / 8'3" feet	Wheel Base	4725 + 1350 mm / 15'7" feet
Ground Clearance	298 mm / 1'0" feet

Cylinder Configuration	In Line	Displacement	6557 cc
Engine Power	220 @ 2300	Fuel System	Water Cooled turbo charged
Torque	770 @ 1400	Valve Mechanism	-
Valves per Cylinder	-	Compression Ratio	-
Assembly	Imported	Warranty	2 Years 120000Km
No of Cylinders	4	Fuel Grade	-
CO2 Emission	Euro II	Bore/stroke (mm)	110x115

Minimum Turning Radius	8.5 m	Steering Type	Recirculating ball type steering
Power Assisted	Integrated power steering	Steering Switch	-

Tire / Tyre Size	11-00-20R	Wheel Size	20 in
PCD	mm	Wheel Type	Stud pilloted 10 hole steel dis

Mileage City	0 KM/LITER	Mileage Highway	KM/LITER

Fuel Tank Capacity	400 L

Gearbox	7-speed

Suspension	Front: Semi elliptic multi leaf springs, Rear: Semi elliptic multi leaf with auxiliary springs	City driveability (20-80 kmph)	-

Top Speed	-	Drive Modes	-
Parking Sensors	-	Acceleration 0-100kmph	-
Headlights	-	Day Time Running Lights (DRL)	-

Brakes	Driving Brake, Parking Brake, Auxiliary Brake	Braking (100-0 kmph)	-
Braking (80-0 kmph)	-

Drive Type	Front/Four wheel drive	Drive Setup	Driver right
Brochure	Download	Waiting Time (Own)	-
Release Date	6 January 2022	Category	Work Related
Outer Door handle finish	-	Door Visor
Multi Information Combination	-	Seats, Armrests & Door Lining Inserts	-
Interior Color	-	Insight Door Handles	-
AC Vent Knobs	-	Hand Brake Knob	-
Antenna	-	Inner Lights	-
Supervision Cluster / Driver Multi Information System	-

Sound System / Speakers	-	USB Charger	-
Infotainment / Funtainment System / Audio System	-
Axels	-	Licensed Weight	-

Comfort & Convenience

CoolBox	Cup Holders
Power Seats / Seat Adjustment	Remote Boot/Fuel-Lid
Steering Adjustment	Sun-Roof \| Moon-Roof	\|
Cruise Control	Keyless Entry
Power Mirror	Remote Keyless Entry
Heated Seats	USB and Auxillary Cable
Climate Control	Rear AC Vents
Steering Switches	Arm Rest
Multi Info	Optional Navigation
Vanity Mirror	Accessory Power Outlet
Seat Lumbar Support	Smart Access Card Entry
Voice Control	Steering Wheel Gearshift Paddles
Central Console Armrest	Tailgate Ajar Indicator / Trunk Warning
Power Windows	Wiper Tinted Glass
Traffic Jam Assist	Navigation System / GPS System
Rear Ventilation	Terrain Response System
Air Conditioner	Remote Trunk Opener / Tailgate
Fast Charging	Auto door lock with speed
Brake Override System (BOS) / Smart pedal	Smart Entry
Auto A/C	Wifi Hotspot
Voice Command	Dust & Pollen Air Filter / Air Purifier
Digital Clock	Outside Temperature Display
Smart Welcome System	Refrigerator Compartment
Cabin Watch	Cabin Talk
Adaptive Cruise Control	Lane Winker
Remote Windows / Smart Key Open Close

Interior

Defogger		Tachometer
Third Row Seats		Defogger
Rear Window Defroster		Folding Rear-Seat
Leather Interior		Rear Seat Headrest
Heater		Interior Lighting
Isofix Seat/ Child Seat		Front Map Lamps

Exterior

Alloy Rims		Leather Seats
Front Fog Lights		Leather Seats
Alloy Rims		Rear Window Wiper
Front Fog Lights		Adjustable Headlights / Headlights Leveling
Auto Wiper / Rain Sensing Wiper		Power Antenna
Removable/Convertible Top		Roof Carrier
Side Stepper		Outside Rear View Mirror Turn Indicators
Integrated Antenna		Chrome Grille
Tow Package		Chrome Garnish
Smoke Headlamps		Roof Rail
Heated Wing Mirror		Rear Spoiler
Outside Mirror		Spare wheel
Trunk LID Lining

Safety

Power Door Locks		Alarm System Anti-Lock
Brakes Fog lights		Immobilizer Key
Traction Control System TCS		Child Lock
Rear Power Windows / Electric Windows		Automatic Emergency Braking
Intelligent Speed Assist System		Lane Departure Warning
Rear Seat Belts		Electronic Brake Assist EBA
Tyre Pressure Monitor System RPMS		Vehicle Stability Control
Anti-Theft Device		Central Locking
Speed Alert		Crash Sensor
Hill Assist / Hill Hold Control / Downhill Brake Control (HHC/ HAC / DBC)		Anti-Pinch Power Windows
Blind Spot Monitor		Security System
Hill Descent Control		Automatic Headlamps/ Automatic Headlights
High Mount Stop Lamp		Electronic Parking Brake
Vehicle Stability Management		Driver Condition Monitor
Wade Sensing		Rear Pre-collision Monitor
3D Surround Camera		Road Sign Assist
Vehicle Running Recorder / Trip Recorder
